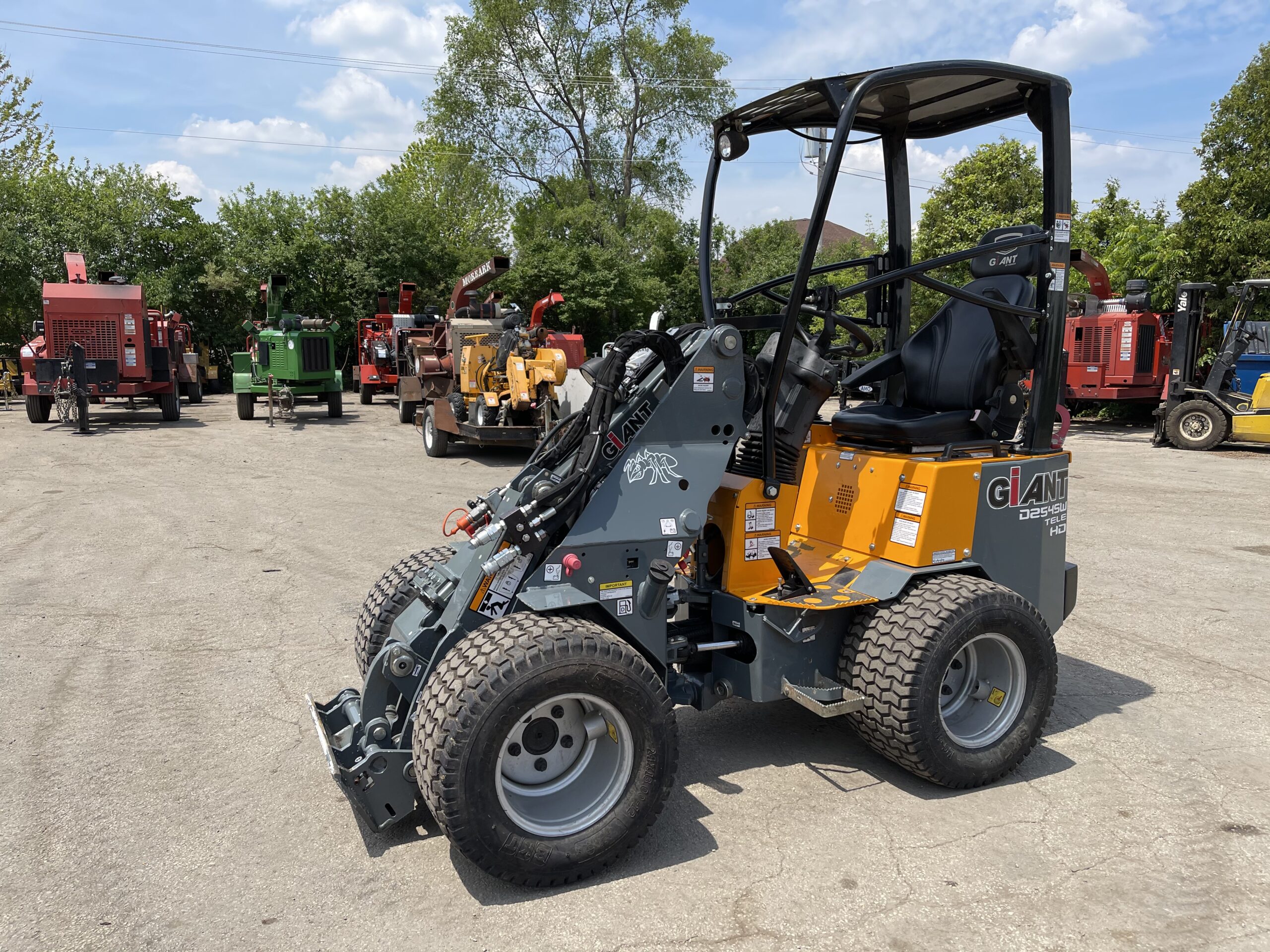

2018 Giant D254SW TELE


Request More Information


2018 Giant D254SW TELE



  • Less than 25 hours!
  • Telescoping boom with 111″ lift height
  • Rear operator seat improves visibility and balance
  • Perfect for hauling brush & logs
  • 1,650 lb. lifting capacity with retracted lifting arm
  • 1,980 lb. tipping load with retracted lifting arm
  • 9.5 MPH travel speed
  • Grass tires virtually eliminate ground damage
  • 25 HP Kubota diesel engine
  • Heavy duty drive mechanism
  • ROPS / FOPS safety roof with safety doors left and right
  • Luxury seat with safety belt, armrest and extended backrest
  • Easy entry and exit from cab
  • 8 function joystick with telescope in/out and 1 Aux function in joystick
  • 1 aux function operated with lever behind joystick
  • Single-side hydraulic hold on dual acting function
  • Work lights in front and rear of unit
  • Work light on boom
  • Back-up alarm
  • Tow hook in rear
  • Universal Mini-Skid attachment plate
  • 155 lb. counterweight
  • Engine block heater
  • Main battery switch
  • Oil cooler
  • Lifting eyes


Price includes full servicing. We are a factory authorized Giant dealer.


Availability: 4-6 weeks.


2018 Giant D254SW TELE   …..  $44,900



Engine 3-Cylinder Kubota Engine
Engine power 25 hp / 17.5 kW
Fuel Diesel
Service weight1 2,420 lbs. (1,100 kg)
Lifting capacity 1,650 lbs. (750 kg) with retracted lifting arm
Tipping load2 1,980 lbs. (900 kg) with retracted lifting arm
Lifting height2 111 in. (2,820 mm)
Length without bucket 88.2 in. (2,240 mm)
Width on standard tires 36.2 in. (920 mm)
Driving mechanism Hydrostatic 4 wheel drive with automotive control by 4 heavy Poclain wheel engines
Control Drive back- and forward through electrical switch
Differential lock Electric controlled slip differential
Driving hydraulics 17.2 GPM (65 ltr/min) 350 bar/5,000 psi
Working hydraulics 7.4 GPM (28 ltr/min) 150 bar/2,175 psi
Driving speed 0-9.5 mp/h (0-15 km/h)
Parking brake Hydraulic multidisk brake
Color GIANT yellow / GIANT grey / black

1 Measured with earthbucket
2 Measured on hinge point in straight position on standard tires


Giant D254SW TELE Compact Wheel Loader Dimensions



A Wheelbase 49.1 in. (1,247 mm)
B Total length (without bucket) 89.2 in. (2,265 mm)
C Total length (with bucket) 115.2 in. (2,927 mm)
D Length 3-point lifting arm
E Min. height 3-point hitch
F Max. height 3-point hitch
G Seat top height 55.4 in. (1,020 mm)
H Max. height with ROPS/FOPS safetyroof 85.4 in. (2,060 mm)
I Max. height with ROPS/FOPS cabin
J Height frontframe 51.6 in. (1,310 mm)
K Dumping height 81.1 in. (2,060 mm)
L Max. height pivot 107.9 in. (2,740 mm)
M Max. height with bucket 129.9 in. (3,300 mm)
N Rollback angle (on the ground) 43°
O Rollback angle at max. lifting height 50°
P Dumping angle (max.) 40°
Q Loading angle (max.) 34°
R Diameter standard tire ø 22.4 in. (570 mm)
1A Maximum radius external 87.6 in. (2,225 mm)
1B Radius at the outer edge 77.4 in. (1,967 mm)
1C Inside turning radius 38.5 in. (978 mm)
1D Min. machine width 36.2 in. (920 mm)

Dimensions are measured on standard tires
